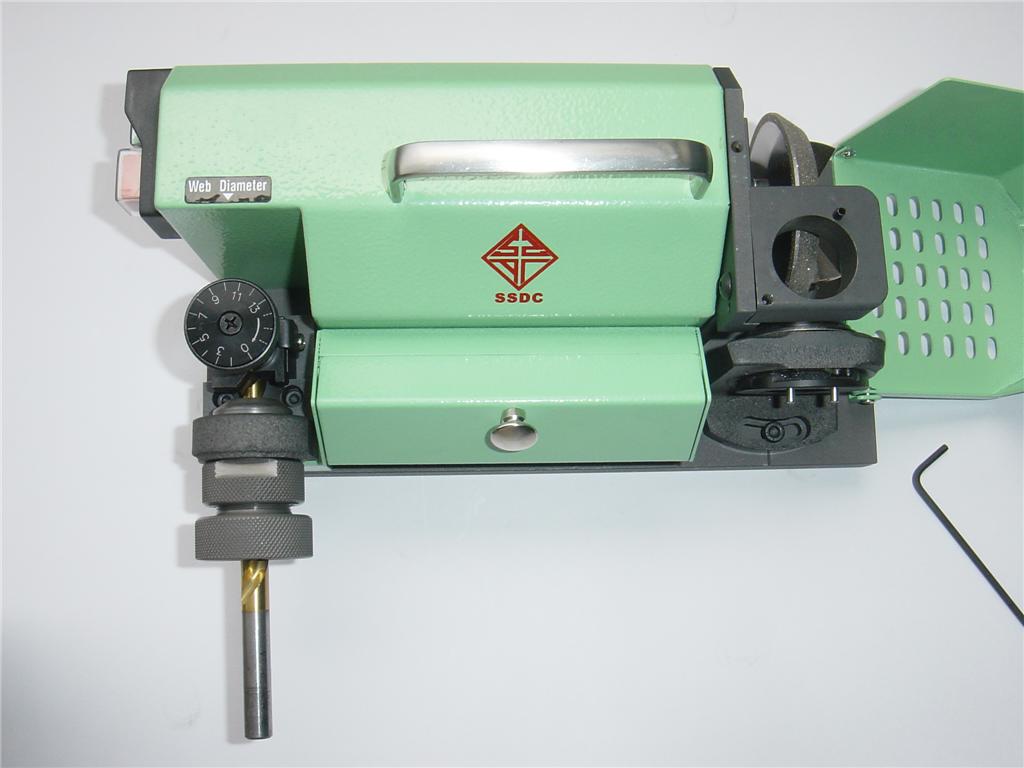

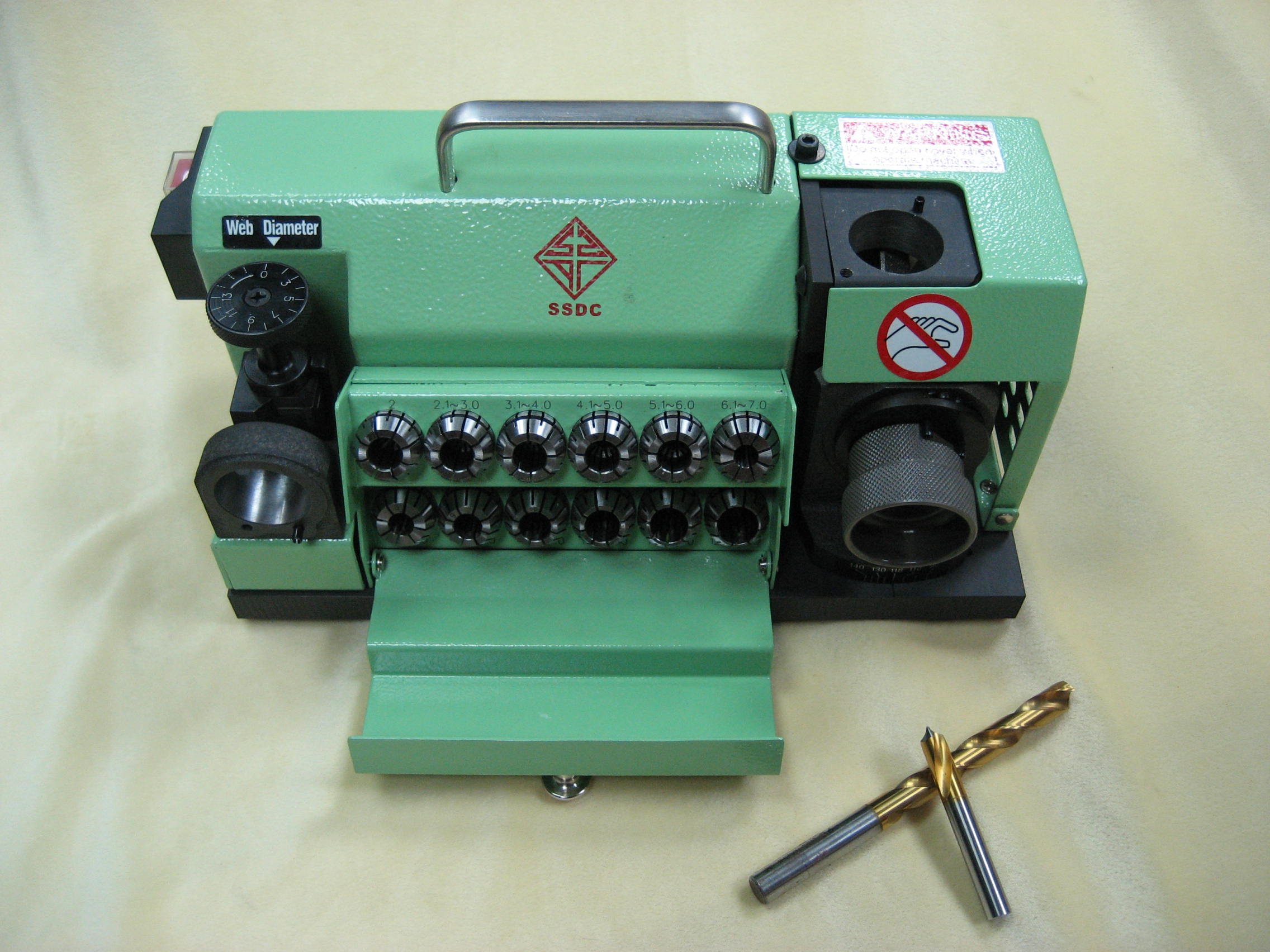

Model : GS-11

DRILL CAPICITY  : 2mm - 13mm

 POINT ANGLE : 90­ – 135 DEGREE

 TYPE OF THINNING : X THINNING

 DRILL TYPE : TWIST DRILLS

 POWER REQUIRED : 115 V , 4.5 AMP , 1/4 HP

 REVOLUTION  OF MOTOR : 5300 RPM

 SIZE : 28mm x 15mm x 15mm HEIGH (11” x 6” x 6”)

 Weight :7 kg ( 16 lbs)

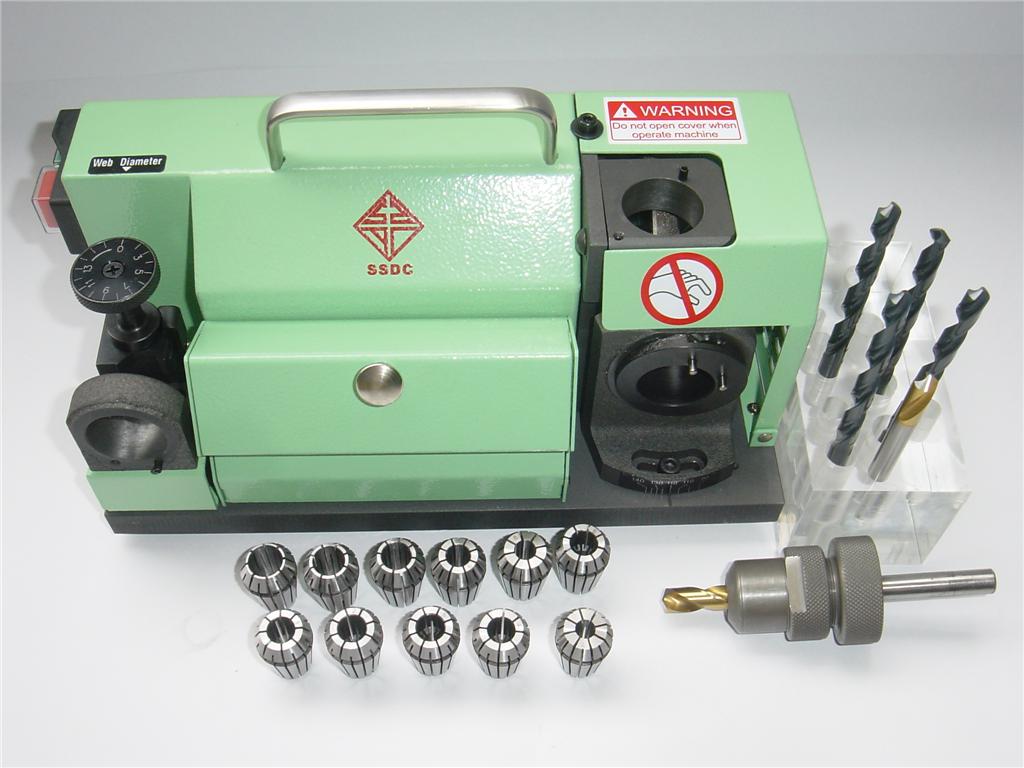

STANDARD ACCESSARIES:
BORAZON (CBN) DIAMOND WHEEL GRIT # 200 FOR HSS x 1 PIECE
HEXGAGON WRENCH   4mm x1
COLLET HOLDER 1 PIECE

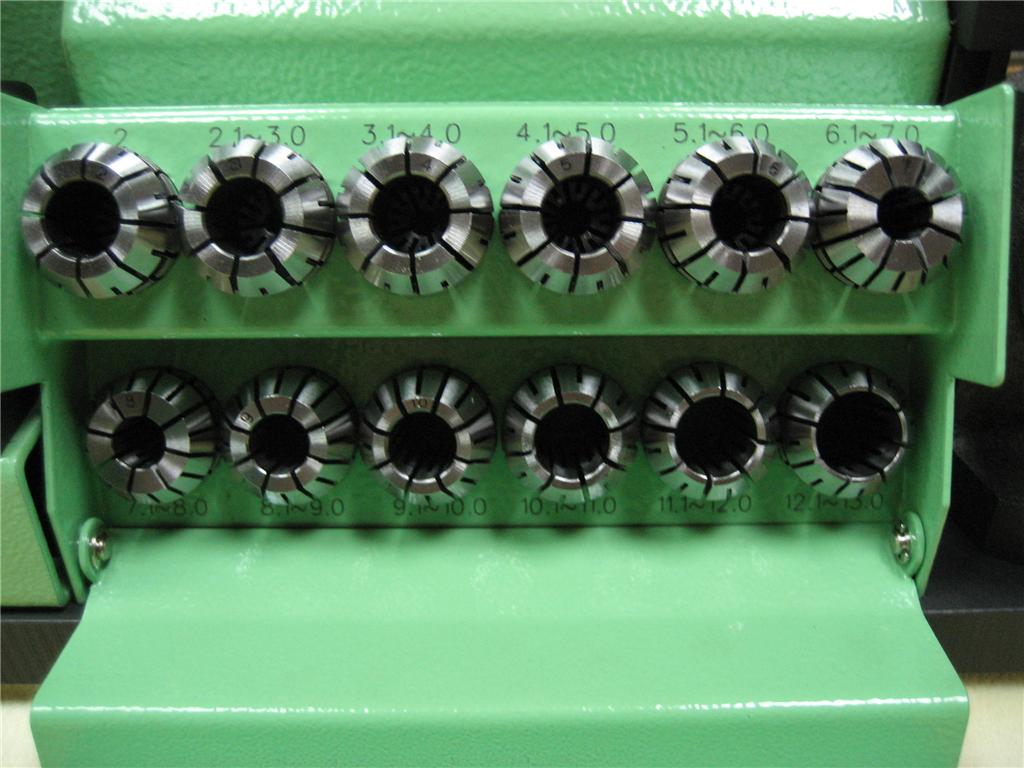

COLLET ( SIZE : ER 20 ) : 12 PCS
(OPTIONAL DIAMOND GRINDING WHEELS AVAILABLE FOR CARBIDE)
BRAND NEW MACHINE WITH 6 MONTH WARRANTY



  Drill Bit Material

 High-Speed Steel ( HSS )    Tin-Coated

  Carbide      Cobalt     Carbide-Tipped Masonry



Drill Type

1.  High Speed Stub Drills

 2.  TiA lN Coated High Speed Stub Drills

 3.  Conical Fluted Straight Shank Twist Drills

 4.  Conical Fluted Straight Shank Twist Long Drills

 5.  Cobalt HSS Straight Shank Twist Drills For Stainless Steel

 6.  TiN Coated Straight Shank Twist Drills

 7.  Straight Shank Twist Drills For Aluminum

 8.  Sink & Step Drills For Screw Thread
